Customer satisfy is the eternal pursue of corpoation
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | Laminated Copper Busbar |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton package |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000 pcs |
| Name: | Laminated Copper Busbar | Size: | Customize |
|---|---|---|---|
| Thickness: | 3.0mm | Width: | 27.5mm |
| Length: | 243mm | Feature: | Fireproof |
| Finish: | Plate With Nickel | Grade: | Electrical Grade |
| Item: | A31 | ||
| High Light: | copper battery bus bar,electrical grade copper bar |
||

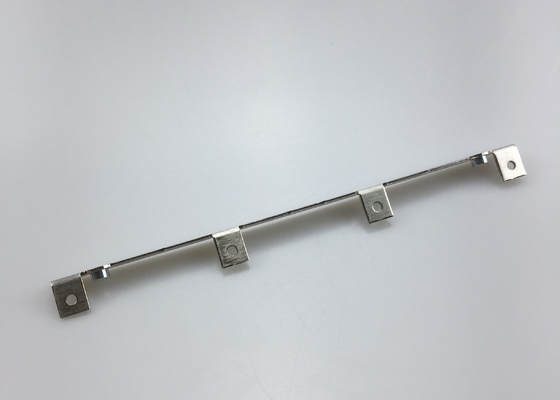

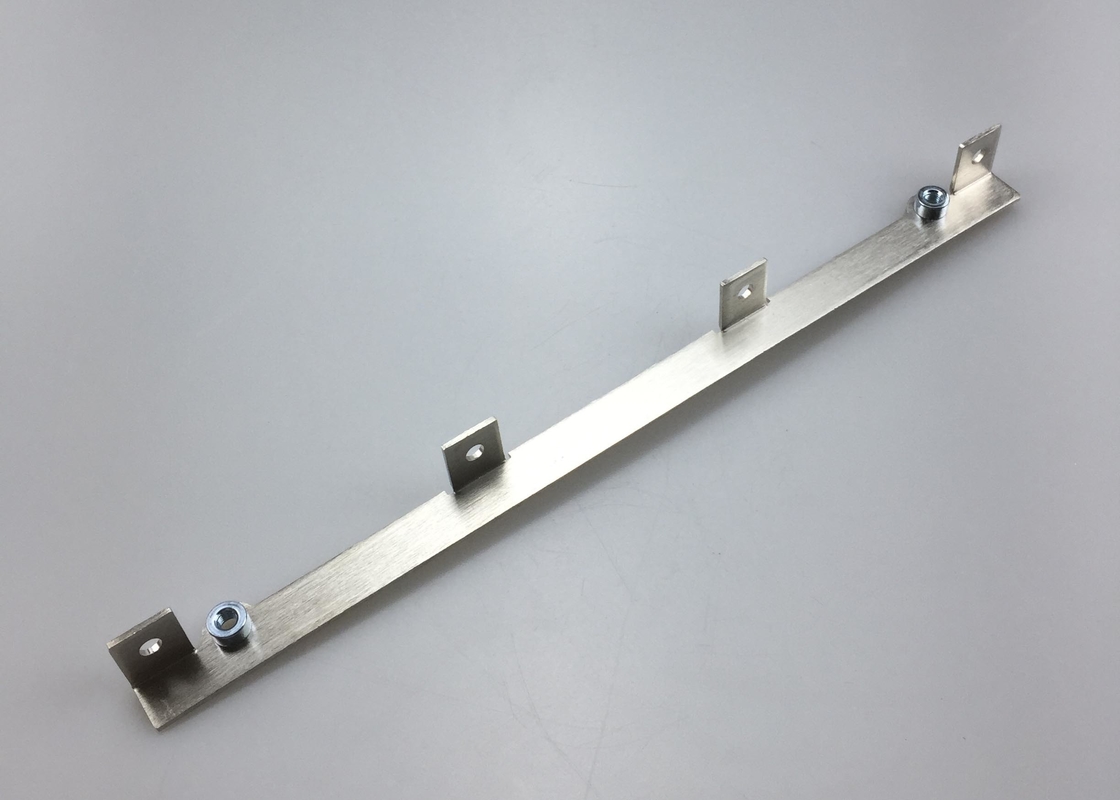

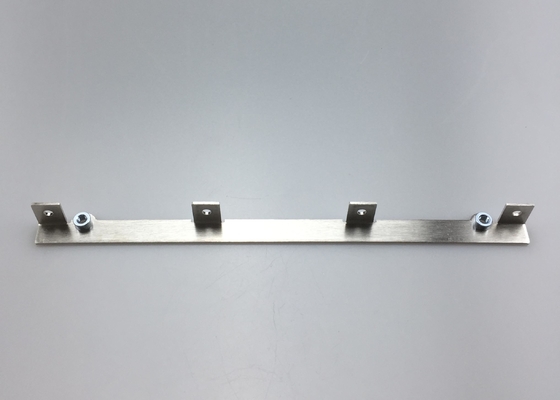

Fireproof Laminated Copper Busbar , OEM Electrical Grade Copper Bar
Laminated Copper Busbar Introduction
Laminated Copper Busbar made in high conductivity laminated copper foil . Flexible copper connector are using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure .The process assures minimum resistance and helps in increasing current ,The service life as well as bringing a reduction in downtime. Further, these also come with superior mechanical & electrical properties at high temperatures.
Laminated Copper Busbar Details
| Material: T2 Red copper |
| Size: Custom made |
| Item: |
| Product Name: Laminated Copper Busbar |
| Thickness: 3.0mm |
| Width: 27.5mm |
| Length: 243mm |
| Feature: Fireproof |
| Finish: Plate with nickel |
| Usage: Electric power industry for connecting conductors. |
Laminated Copper Busbar Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Resistivity (Ωmm²/m) | 0.018 |
| Tensile Strength (MPa) | ≥250 |
Laminated Copper Busbar Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-3.0*350*750 | 3.0 | 0.3mm+0.3mm | 350 | 750 | 7.01 |
| BG-4.0*270*1056 | 4.0 | 0.3mm+0.3mm | 270 | 1056 | 10.15 |
| BG-5.0*106*412 | 5.0 | 0.3mm+0.3mm | 106 | 412 | 1.94 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| Others | As request |
Inspection Euqipment:
We have the chemical elements analysis centre and the mechanical testing centre
which include the following quality control measures:
Spectrographic analysis, magnaflux crack detection, ultrasonic detection, dynamic fatigue testing, hardness testing, proof and ultimate breaking strength test... TUV DIN EN ISO 9001: 2000 & ISO/TS16949 available
Production Show
