| Place of Origin: | Guangdong, China |
| Brand Name: | BG |
| Certification: | ISO9001, SGS |
| Model Number: | Tin Plated Copper Bus Bar |
Smooth Surface Tinned Copper Bar / Insulated Earth Bar Easy To Install
Surface Tinned Copper Bar Main Features:
What's the BUSBAR PAN ASSEBLY?
Modular power distribution which consists of a variety of forms, can be formalized by the standard design of the distribution board.
Easy to install
By using complex and costly and time-MCPD is a quick and easy installation it does not require more than two busbars consuming production process possible.
Diverse applicability
Even in the same product configuration changes easily in accordance with the appropriate circuit construction site conditions, it can be configured.
First installation
MCPD in place using a distribution panel installation is needed urgently, you can install an emergency
Surface Tinned Copper Bar Advantage
1. No visible welds, smooth surface;
2. We accept custom design and provide free samples, which are usually manufactured by wire-cut electrical discharge machining (EDM);
3. Used for Electrical measuring instruments, electrical protective devices, current sensing modules, automatic control system, and so on.
4. Flame redardant insulation tube
5. Easy to install and fixing
| Product Name: Smooth Surface Tinned Copper Bar / Insulated Earth Bar Easy To Install |
| Thickness: 3.0mm |
| Width: 55mm |
| Length: 70mm |
| Feature: Excellent electrical conductivity |
| Finish: Tin Plated |
Technical Parameters:
| Thickness×Width (mm) | 1.5 -20× (15-500) |
| Copper content | 99.98% |
| Density (g/cm³) | 8.9 |
| Elongation ( %) | 45-50% |
| melting Point | 1083℃ |
Conventional Types and Sizes:
| Types | Total Thickness | Thickness of copper | Width | Length | Weight(kg/m) |
| BG-1.0*550*650 | 1.0 | 0.3mm+0.3mm | 550 | 650 | 3.18 |
| BG-1.5*550*650 | 1.5 | 0.3mm+0.3mm | 550 | 650 | 4.77 |
| BG-2.0*220*460 | 2.0 | 0.3mm+0.3mm | 220 | 460 | 1.80 |
| BG-6.0*268*333 | 6.0 | 0.3mm+0.3mm | 268 | 333 | 4.77 |
| BG-3 ×30 | 3 | 0.3mm+0.3mm | 30mm | ≤6000mm | 4.806 |
| BG-4 ×40 | 4 | 0.3mm+0.3mm | 40mm | ≤6000mm | 8.544 |
| BG-5 ×50 | 5 | 0.3mm+0.3mm | 50mm | ≤6000mm | 13.35 |
| BG-6 ×60 | 6 | 0.3mm+0.3mm | 60mm | ≤6000mm | 19.224 |
| BG-8*80 | 8 | 0.3mm+0.3mm | 80mm | ≤6000mm | 34.176 |
| Others | As request |
Why choose our company:
► We are manufacturers of bus bars since year of 2001 with automatic machines, professional production and inspection teams.
► Our staff s are all with more than 5 years working experience. We will supply you considerate pre-sale and after sale service
► Fast delivery for samples and bulk quantity,we have raw material in stock
► OEM/DEM is welcome.
► We are factory with competitive price and punctual delivery time.
► Inspect every product before delivery to ensure high quality.Our products have gained ISO9001 and IATFcertificate.
► Guarantee is 15-20years for flexible copper bus bar.

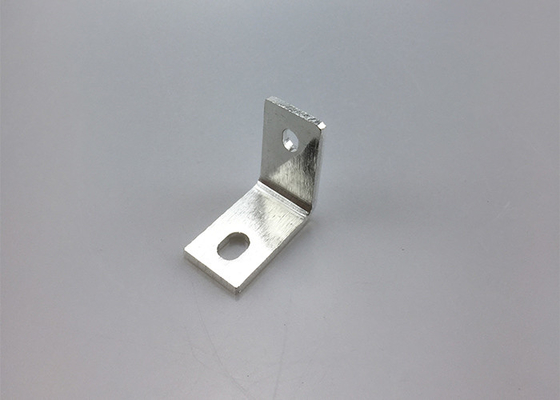

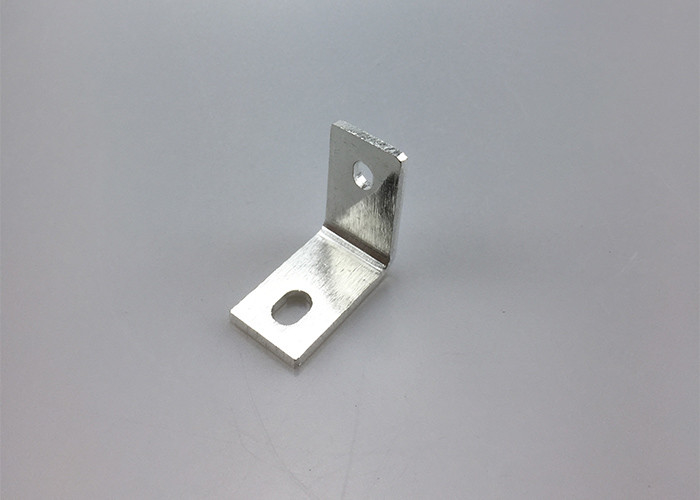

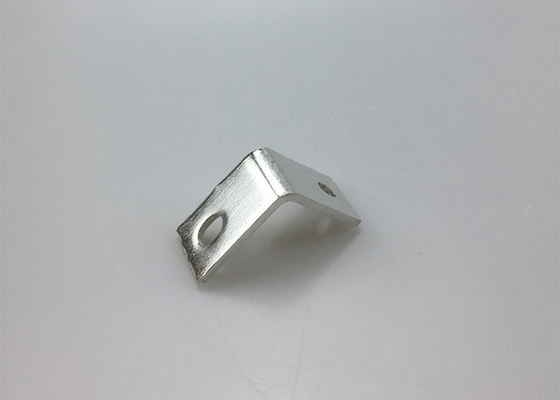

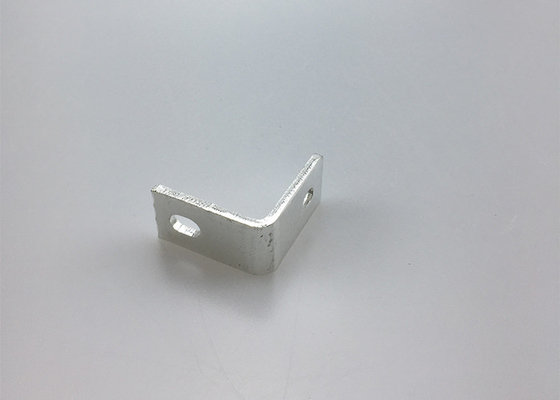

Tin Plated Copper Bus Bar Pictures
